BJM Baby Series 12 volt Submersible Pumps

Baby Series Submersible Pumps -  The BJM Baby Series is a handy little 12 volt utility pump for use in areas where conventional AC power is not available.  The Baby is available in a manual or automatic configuration.

BJM J Series Submersible Pumps

J Series Submersible Pumps -  The BJM J-Series electric submersible pumps offer top performance and high quality for a very modest investment.  Motor casings, hardware and impeller shafts are made from 304 stainless steel, with all other exposed parts made of cast iron.  Also available in a stainless steel version (JX) and a high temp version (JF and JXF).  Pumps 1/2HP and above, feature double mechanical seals which work in a separate oil chamber.  Oil seal ring(s) are installed above the impeller to help keep impurities and abrasives away from the mechanical seals.  All pumps are equipped with overload protection which guards against low and high amperage as well as excessive temperatures.  The J55 and J75 can also be mounted on the BJM slide rail system.

BJM S Series Submersible Pumps

S Series Submersible Pumps -  The BJM S Series pumps are heavy duty cast iron construction and feature non-clog, single vane impellers designed for high volume solids handling performance.  They are also available in a stainless steel version (SX) and a high temperature version (SF and SXF).  Standard features include a 33ft. power cord, 304SS motor housing, double mechanical seals, additional lip seal installed above the impeller, winding protection, class F motor insulation and automatic switch that turns motor off if temperature and/or amp draw is too high.

BJM SK Series Submersible Pumps

SK Series Submersible Pumps -  The BJM Shredder (SK) pumps reduce solids to a size slightly larger than if passed through a grinder pump.  The shredding action is caused by using a cutter style impeller with a tungsten carbide tip against a "spiral" shaped diffuser plate.  Standard 33ft. power cable, 304SS Motor Housing, double mechanical seals, an additional lip seal installed above the impeller, winding protection, class F motor insulation and a thermal switch that turns the motor off if temperature and/or amp draw is too high.  Also available in stainless construction (SKX), a high temperature version (SKF and SKXF) and an explosion proof version (XP-SK).

BJM SKG Series submersible pumps

Featuring patented RAD-AX® Dual Shredding Technology, the SKG Series is designed to obliterate flushable wipes and other difficult solids in municipal and industrial wastewater applications. Items previously considered difficult or near impossible to pump are effectively handled through the innovative design of the SKG. The robust construction prevents downtime and reduces maintenance for longer life.

Some applications require specially designed pumps capable of handling high temperature liquids, up to 200°F (93°C). BJM Fahrenheit® pumps are designed and constructed to pump clear or solids-laden liquids up to 200°F. The BJM cast iron F Series submersible pumps are excellent in sumps where liquids are too hot for any other submersible pumps. Featuring patented RAD-AX® Dual Shredding Technology, the SKGF Series is designed to obliterate difficult solids in high temperature installations.

BJM SV Series Submersible Pumps

SV Series Submersible Pumps -  The BJM SV Series pumps are equipped with vortex type recessed impellers, undoubtedly the best non-clog impellers ever invented for the handling of mud, raw sewage, viscous liquids, rags, wood chips and other solids.  These pumps will pass solids up to 90% of pump outlet diameter.  Standard 33ft. power cable on pumps ½ HP and below and 50ft. on pumps 1HP and above, 304SS motor housing, double mechanical seals, an additional lip seal installed above the impeller, winding protection, class F motor insulation and a thermal switch turns the pump motor off if temperature and/or amp draw is too high.

BJM R Series Submersible Pumps

R Series Submersible Pumps -  The BJM R Series pumps are ideal for use in constructions sites, mines, fountains and other services in industrial plants and utilities.  These pumps feature a top discharge, 33ft. power cable on pumps ½ HP and below and 50ft. on pumps 1HP and above, 304SS motor housing, double mechanical seal, an additional lip seal installed above the impeller, winding protection, class F motor insulation and a switch that turns the motor off if temperature and/or amp draw is too high. When the motor cools the switch will automatically reset and the pump will turn back on.  Also available in stainless steel construction (RX).

EPD/Optima Submersible Pumps

EPD/Optima Submersible Pumps -  Known as Ebara’s PRO Drainer™ series offers a complete submersible pump solution for light slurry, effluent, ground water and other general services.  PRO Drainer series pumps are manufactured with high quality stainless steel components.  This efficient, versatile and reliable pump is ideally suited for many industrial, commercial, residential and agricultural applications in both fixed and portable installations.  Model EPD is UL and CSA listed.  Model Optima is UL certified.

BJM Perfecta Series Submersible Pumps

Perfecta Series Submersible Pumps -  The BJM Perfecta Series pumps are ideal for handling everything from dirty water to corrosive liquids.  Well suited for use in the metal plating, salt processing, marine, agriculture, aquaculture, chemical and other industries.  Units are a virtually unbreakable compact and lightweight design - only 13.5 lbs.  They offer excellent resistance to a variety of chemicals and feature both a 1-1/4" FNPT and a 1-1/2" tapered hose discharge connection and thermal breaker incorporated in motor windings.  The GF32-9 and IGF32-9 comes equipped with a fully automatic on/off level switch as standard.  Not for use with flammable liquids.  Verify chemical compatibility before operating pump.

DWU/DWXU Submersible Pumps

DWU/DWXU Submersible Pumps -  Known as Ebara's Dominator line of submersible solids handling pumps, these units are designed for reliable pumping of waste water and other fluids with suspended solids up to 2″ diameter.  Stainless steel construction is ideal for residential, commercial and industrial applications.  Double mechanical seals are a standard feature ensuring long life and enhancing the rugged, high service factor motor design.  High quality components are stronger, dimensionally consistent and lighter in weight than conventional cast iron parts.  Model DW(A)(F)U, DWX(A)(F)U is CSA certified (3HP excluded).

BJM LWA Series Pumps

LWA Series Submersible Pumps -  The BJM LWA Series pumps are submersible and light in weight but heavy in features.  These are rugged design agitator type pumps in abrasion resistant hard metal construction for handling dirty water to light slurry applications.  Built-in agitator forces the suspension of settled solids so they can be removed by the pump.

DSU/DSHU Submersible Pumps

DSU/DSHU Submersible Pumps -  The Ebara model DSU and DSHU submersible pumps are constructed of rugged cast iron suitable for sump and drainage applications.  Model DSHU can handle hot water applications up to 176°F.

BJM KB Series Submersible Pumps

KB Series Submersible Pumps -  The KB Series pumps from BJM is designed for heavy duty dewatering and light slurry applications such as settling basins, retention ponds, wash down sumps, quarries, barge and tank cleanout, etc.  KB Series pumps feature abrasive resistant chrome iron components, an inlet agitator to suspend settled solids, semi- open impeller, class H motor insulation, built in current and thermal overload protection, double mechanical seals, heavy duty lip seal ahead of the mechanical seals and a top discharge space saving design.

DVSU/DVSHU Submersible Pumps

DVSU/DVSHU Submersible Pumps -  The model DVSU and DVSHU submersible pumps are constructed of rugged cast iron suitable for sump and effluent applications.  These pumps feature a semi-open vortex style impeller suited for fluids containing abrasive and/or suspended solids.  Model DVSHU can handle hot water applications up to 176°F.

BJM KZE Series Submersible Pumps

KZE Series Submersible Pumps -  The BJM KZE Series pumps are high capacity hard metal submersible slurry pumps with built in suction agitator, designed to handle difficult pumping services in mining, mineral processing, quarries, steel production, and other industries.  These rugged pumps feature double mechanical seals, laby and lip type seal chamber protection, permanently grease lubricated heavy duty upper and lower bearings, semi-open hard metal slurry type solids handling impeller and a hard metal agitator keeps heavy solids from settling and allows them to be pumped away.  Motors are 1800 rpm with class H insulation, 50' power cables as standard, 50' seal leak sensor cable with moisture sensing probe and motor thermal sensors.

DWP Submersible Pumps

DWP Submersible Pumps -  The portable model DWP is designed for dewatering services and available in standard or stainless construction.  The high head DWP pumps feature a slim design with top discharge, heavy-duty motors and oversized shaft and bearings.  These submersible dewatering pumps are capable of handling contaminated fluids in a variety of applications at construction sites, mines, quarries, power stations, steel plants, etc.

BJM HAZ Series Submersible Pumps

HAZ Series Submersible Pumps -  The BJM HAZ pump is the first permissible slurry pump with an inlet agitator.  Designed to resist abrasive wear that causes loss of pump performance for reduced down time, maintenance and repairs.  Hard metal construction is designed to outlast rubber lined and regular cast iron pumps.

S Series Submersible Pumps

S Series Submersible Pumps - Gorman-Rupp CSA approved S Series submersible pumps tackle the big jobs.  Where large solids are not a problem, these versatile pumps offer high-head, high-volume operation and stand up to the abuses of the worst conditions.  Whatever the application – general construction, strip mining, tunnel work or general purpose – Gorman-Rupp S Series submersible pumps are built to operate quietly, effectively and safely.

EBG/EBHG Submersible Grinder Pumps

EBG/EBHG Submersible Grinder Pumps -  The model EBG and EBHG submersible grinder pumps easily handle residential or commercial sanitary waste, reducing it to a fine pumpable slurry.  The heavy duty high chrome iron grinder system has powerful blades that reduce solid sizes for smooth non-clogging flow.  The pump is small and lightweight affording ease of installation and transport.

BJM KZN Series Submersible Pumps

KZN Series Submersible Pumps -  The BJM KZN Series pumps are a heavy duty submersible agitator type slurry pump designed to tackle the toughest applications.  These pumps feature hard metal wear resistant components in a compact top discharge design.  Available in a high temperature version (KZNF), a severe duty version (KZNR) and a hydraulic driven configuration (KZN-HYD).

DLU Submersible Pumps

DLU Submersible Pumps -  The model DLU submersible pumps are constructed of rugged cast iron suitable for sewage and wastewater applications.  Designed with semi-open impellers that have a large wear area and open passageways, the model DLU offers the best handling for stringy and/or abrasive materials.

DVU Submersible Pumps

DVU Submersible Pumps -  The model DVU submersible pumps are constructed of rugged cast iron suitable for water, wastewater and sewage applications.  The Model DVU has a vortex style recessed impeller suited for pumpage containing abrasive, stringy and/or suspended solids.

DMLEU Submersible Pumps

DMLEU Submersible Pumps -  The model DMLEU is a non-clog, single channel impeller design suitable for use in commercial and industrial wastewater applications  These units are constructed of robust cast iron with large diameter, short overhang shafts and stainless steel fasteners.  The single channel impeller passes up to 3” spherical solids and an oil lubricated double mechanical seal with lower faces of hard silicon carbide provides strong and reliable shaft sealing for longer service life.

DLFU Submersible Pumps

DLFU Submersible Pumps -  The model DLFU submersible non-clog pumps are constructed of rugged cast iron with heavy duty, high efficiency motors.  Well suited to industrial and municipal water and wastewater applications and other pumping services.  High efficiency impellers pass up to 3-1/4″ diameter solids.

DVFU Submersible Pumps

DVFU Submersible Pumps -  The Ebara model DVFU submersible pumps are constructed of rugged cast iron with heavy duty, high efficiency motors suitable for industrial and municipal water and wastewater, drainage and sewage applications.  The high efficiency semi-open recessed vortex style impeller make it possible to pass up to 5" solids.

DSC/DSCA3 Submersible Pumps

DSC/DSCA3 Submersible Pumps -  The Ebara model DSC and DSCA3 submersible pumps are constructed of rugged cast iron with heavy duty, high efficiency motors suitable for industrial and municipal water and wastewater, sewage and flood control applications.  This large submersible non-clog pump has the ability to pass spherical solids up to 8″ in diameter and can be installed in wet or drypit applications.

DSC4/DSCA4 Submersible Pumps

DSC4/DSCA4 Submersible Pumps -  The Ebara model DSC4 and DSCA4 submersible pumps are constructed of rugged cast iron with heavy duty, high efficiency motors suitable for industrial and municipal water and wastewater, sewage and flood control applications.  This large submersible non-clog pump has the ability to pass large solids and can be installed in wet or drypit applications.

JCU Submersible Pumps

JCU Submersible Pumps - Thousands of installations attest to the remarkable versatility of the Goulds model JCU submersible slurry pump.  Fifteen sizes are available in a wide range of materials and configurations making the JCU ideal for most medium duty abrasive and/or corrosive slurry services.

HSU Submersible Pumps

HSU Submersible Pumps - Recessed impeller design easily accommodates large, stringy and fibrous solids without clogging.  Because it is completely submersible, the HSU can be used in virtually any sump application.

HSUL Submersible Pumps

HSUL Submersible Pumps - These submersible recessed impeller pumps easily handle any solid up to its suction/discharge size. Versatile mounting allows pump to stand or to be mounted on an optional slide rail.

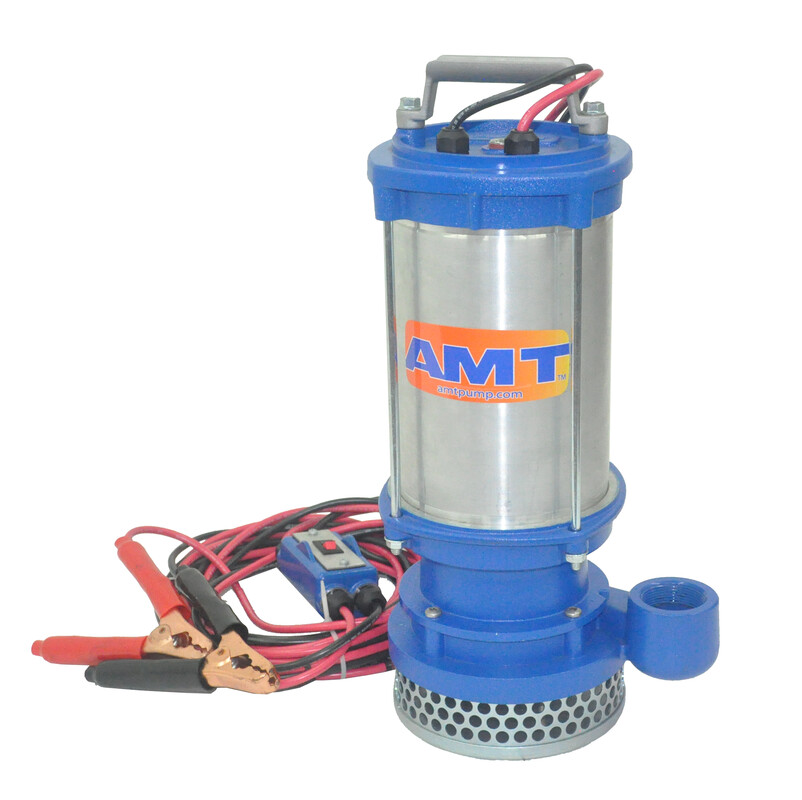

AMT 12 volt submersible pumps

The AMT Submersible 12 Volt DC pump is designed for use in dewatering applications where limited or no electricity is present and for emergency back-up during power failure. The 12VDC Aluminum Submersible Pump is both lightweight and portable and perfect for applications with no electricity present . Unit comes assembled with 30 foot power cord, which has battery clips for easy attachment to 12 volt battery.

• Aluminum Construction with Aluminum Impeller (5891-DC)
• Aluminum Construction with Cast Iron Impeller (5890-DC)
• 1/3 HP, 12 Volt DC 30 Amp Motor
• 1-1/2” NPT Discharge
• Buna-N Mechanical Seal with Carbon and Ceramic Faces
• Operates Approximately 60 Minutes on Fully Charged 55 Amp-Hour Battery
• Built-In Carry Handle
• Steel Strainer Built into Pump
• Overload Protection
• On/Off Switch
• Maximum Flow 43 GPM

AMT contractor submersibles

AMT Submersible Contractor pumps are intended for use in residential, commercial and industrial settings. Applications include: construction sites, waste water, storm water, farming, irrigation, excavation, mining, marine, basement and other general drainage applications involving sediment laden liquids with solids up to 3/8″ in diameter. Self-cleaning impeller featuring abrasionresistant high chromium steel construction for durability. Pumps have a 3450 RPM electric motor fitted with an unfinished power cord that requires field wiring (no controls are supplied). Motors are rated continuous duty and single phase models have thermal overload protection.

• Cast Iron with Stainless Steel Motor Housing
• Hi Chromium (HCr) Steel Impeller and Cover for Wear Resistance and Durability
• Superior Motor Design for Quiet, Low Noise Operation
• Silicon Carbide Mechanical Seals Plus Shaft Seal
• 3” and 4” Models Feature Companion Flange Connection
• 115 VAC, 230 VAC or 460 VAC @ 60 Hz
• Single or 3 Phase Available
• 2”, 3” or 4” NPT
• 1 to 7.5 Horsepower
• UL/CSA Listed

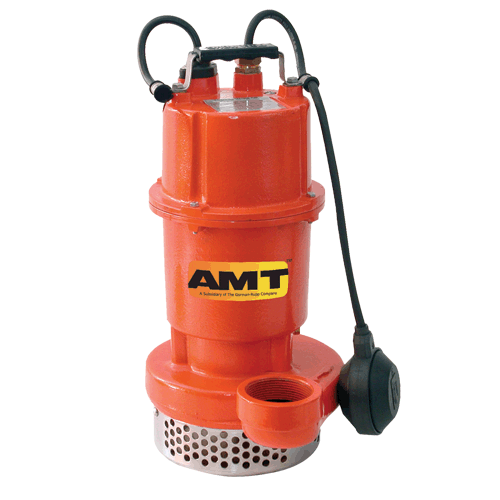

AMT drainage/utility submersible pumps

AMT Submersible Sump pumps are designed for many applications including sump pits, drainage pits, overflow tanks, basements, dewatering, excavation, grain elevators, construction drainage, cooling towers and other applications requiring clear water removal. AMT Submersible pumps include suction screen and automatic float switch (except stainless steel model 5780-98).

• Stainless Steel, Cast Iron and Plastic Construction
• Built-in Thermal Protection
• Triplex Seal System; Double Mechanical Seals Plus Shaft Seal
• Automatic Mercury Free Float Switch Included (Except Stainless Steel Model 5780-98)
• U.L./CSA Listed
• 1/2 HP, 115 VAC UL/SJT Cord with 3 Prong Plug
• 1-1/2” to 2” NPT Port Sizes
• Clog Resistant Impellers
• Oil Filed, Quiet Run Motor Design

AMT IPT submersible pumps

Slim-design, light weight CSA listed submersibles feature top discharge as well as cast-iron impellers, 304 stainless steel casing, motor housing, shaft and hardware. Pump motor is thermal overload protected. An optional piggyback mercury-free float switch is available. Float Switches: The mercury free liquid level control has a piggyback plug molded to the cord allowing the pump motor to plug into the cord and then plug the entire assembly into a standard grounded outlet.

• 304 Stainless Steel Casing, Motor Housing, Shaft and Hardware
• Cast Iron Impeller, Top and Pump End
• Light Weight Slim Design
• Oil Lubricated Seals, Nitrile O-Rings
• Lower Seal — Silicon-Carbide, Viton®
• Upper Seal — Carbon Ceramic, Viton®
• Thermal Overload Protected
• 2” NPT Discharge
• 1/2 to 1 Horsepower

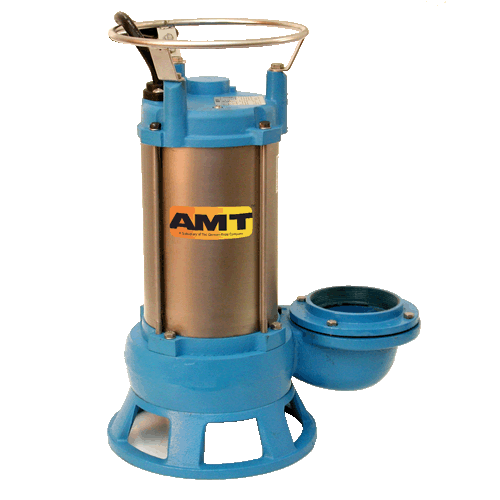

AMT shredder sewage submersible pumps

AMT Submersible Shredder Sewage pumps feature an enhanced spiral shredder mechanism plate and carbide tipped impeller to prevent clogging and reduce maintenance when cutting through stringy, fibrous and sludge type waste. Applications include: sewage pumping stations, septic tanks, sewage treatment plants, dirty water drainage, flood and emergency. Motors are rated continuous duty and single phase models have thermal overload protection. Minimum liquid requirements must be above 85%. Failure to do so may cause pump damage and void warranty.

• Cast Iron with Stainless Steel Motor Housing
• Carbide Tipped Shredder Impellers
• Spiral Shredder Mechanism Plate Surface Hardened for Enhanced Cutting Ability
• Triplex Seal System: Double Mechanical Seals Plus Shaft Seal
• Lower Seal – Silicon Carbide
• 115, 230 or 460 VAC @ 60 Hz Available
• 1 to 5 Horsepower
• 2”, 3” or 4” NPT
• UL/CSA Listed
• Single or Three Phase Available

AMT general dewatering submersible pumps

AMT Industrial Submersible pumps are lightweight, portable, reliable and energy efficient. The clog resistant impeller is designed for general dewatering pump use of which applications include: sump pumps, basements, construction drainage, dewatering, waste water treatments, agricultural irrigation, flooding and other applications requiring clear/drainage water removal. Motors are rated continuous duty 115VAC @ 60 Hz with standard cord/plug and have automatic thermal overload protection.

• Cast Iron with Stainless Steel Motor Housing
• ½ HP and 1 HP, 115 VAC, 60 HZ with 20 Foot Cord
• 2” and 3” NPT Discharge Port with Hose Adapter
• Clog Resistant Impeller
• Continuous Duty with Automatic Thermal Overload Protection
• ½ Horsepower Models
◆ Heavy Duty Polypropylene Strainer
◆ Ceramic/Carbon Mechanical Seal Plus Shaft Seal
• 1 Horsepower Models
◆ Stainless Steel Strainer
◆ Dual Ceramic/Carbon Mechanical Seal Plus Shaft Seal
• Built-In Carry Handle for Portability
• UL/CSA Listed

AMT utility submersible pumps

AMT Submersible Drainage / Sump pumps are lightweight submersible pumps with built-in float switches. These submersibles are intended for use in residential, commercial and industrial settings.

5010-99
• Heavy Duty Corrosion Resistant Stainless
Steel Housing with Plastic Internals
• 1-1/4” NPT Discharge with Adaptor
• Automatic Tethered Float Switch Included
• 3/4 HP, 115VAC UL Cord with 3 Prong Plug
• Thermal Overload Protection
• Garden Hose Adapter Included
5000-95
• Heavy Duty Corrosion Resistant Stainless Steel Housing with Cast Iron Internals
• Automatic Vertical Float Switch Included
• 2/5 HP, 115VAC UL Cord with 3 Prong Plug
• Thermal Overload Protection
• Oil Chamber Design with Ball Bearing and Secondary Shaft Seal for Long Life

Stancor Submersible Pumps

Stancor Dewatering Pumps

Removing water from construction and mining sites can be demanding.  Stancor™ manufactures a broad line of MSHA approved explosion-proof pumps to handle the rigors of difficult operating environments.  Pumps are constructed from light weight alloys, including extensive use of stainless steel components for longer life.  Rubber clad diffusors are utilized to extend life and maintain efficiency by making field adjustments easy.  Stancor™ also provides the longest cable lengths in the industry and MSHA-approved controls to further maximize service life.

Stancor Solids Handling Pumps

Pumping liquids is not the only job of a pump.  In many applications, the pump must also deal with a variety of solids – from diapers and wipes in sewage to a wide range of debris (commonly referred to as “trash”) in other waste and slurry services.  Stancor™ offers a number of pump models to help our customers balance purchase cost, operating cost and performance when dealing with a mixture of solids and liquids.  This portfolio of heavy duty quality pumps can handle solids as large as 3 inches while maintaining key performance specifications.

Stancor Specialty Materials Pumps

Some applications present unique challenges.  Stancor™ offers pumps in a variety of specialty materials to combat extreme pH levels and difficult contaminants.  A full line of stainless models, including a screened inlet design featuring 304 stainless steel or solids-capable units made from 316 stainless steel are used in a variety of industrial and contaminated waste pumping applications.  Those pumps also include Viton® elastomers and silicon carbide mechanical seals to resist corrosion and abrasion. Stancor™ also offers a variety of coatings including Nickel Bronze to extend service life in high temperature and other demanding environments.
