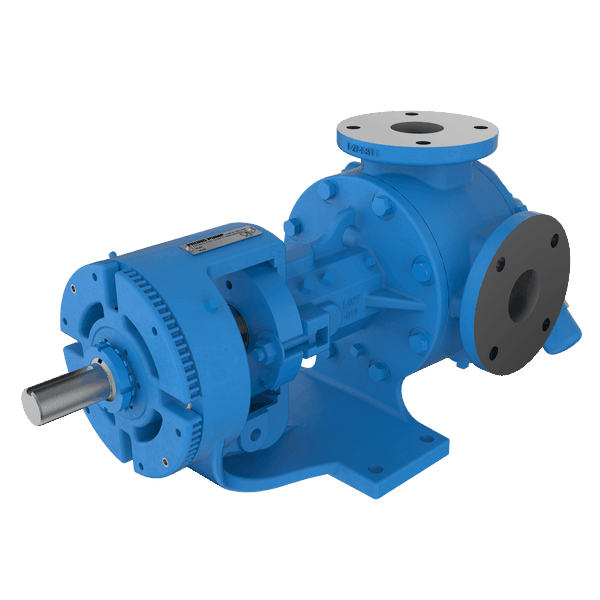

Viking 1127A Series™ internal gear pump with O-Pro® Seal

The 1127A Series™ internal gear pump with O-Pro® Seal technology is the perfect solution for peanut butter, paints & inks, edible oils, and more due to it's reliable sealing and easy maintenance. It can handle flows from 6 to 320 GPM (1.4 to 73 m³/h).

Features & Benefits

• 316 stainless steel construction for process fluid compatibility
• O-Pro® Guard provides a robust sealing solution for many markets
• O-Pro® Guard rebuildable design offers minimal downtime and low cost

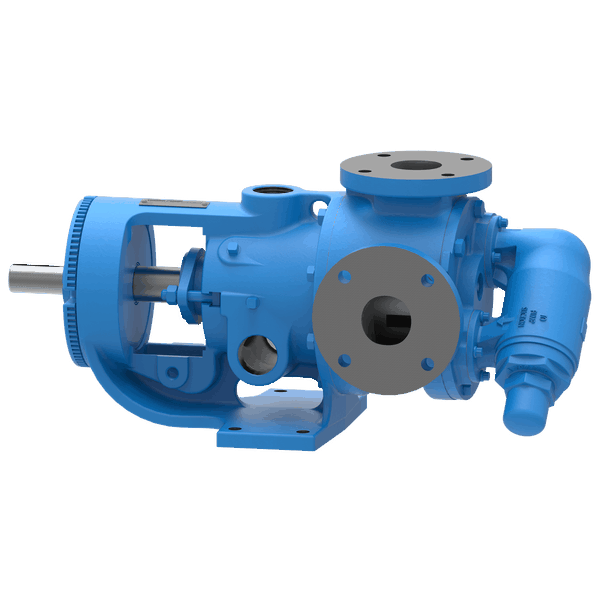

223A Series™ internal gear pump

The 223A Series™ internal gear pump is the ideal solution for lube oil, rubber solution, waxes, and more because of it's ability to withstand extremely high temperatures. It can handle flows up to 500 GPM (114 m³/h).

Features & Benefits

• For refinery and petrochemical applications
• Recommended for extremely high temperatures
• Widest range of sealing options available
• Integral jacket chambers in the bracket and head surround the seal  and pump internals for rapid & efficient heating, or to maintain a constant temperature using steam, hot oil or water

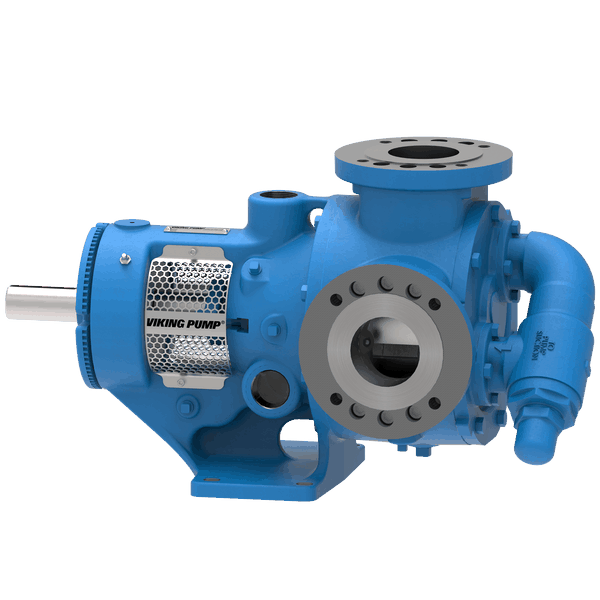

223C Series™ internal gear steel pump

The 223C Series™ internal gear steel pump is the flexible, simple, and adaptable solution for extremely high temperature applications. This new generation of universal pumps comes standard with the U-Plus™ bracket which accepts various sealing options, as well as the ProPort™ casing which accommodates a variety of port sizes and types depending on your needs. It can handle flow rates up to 500 GPM (114 m³/h).

Features & Benefits

• All steel construction for refinery and petrochemical applications
• Recommended for extremely high temperatures
• U-Plus™ bracket, available on H-QS sizes, accepts a wide range of sealing options
• Opposite porting available on all pump sizes

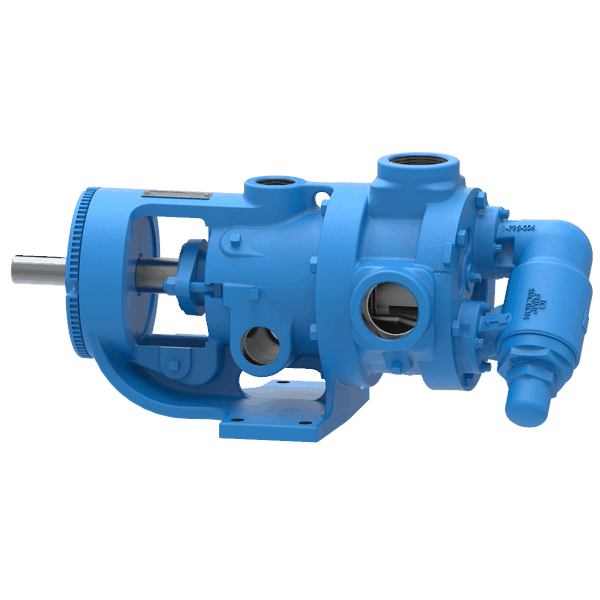

224A Series™ internal gear pump

The 224A Series™ internal gear pump is the perfect solution for heavy fuel oil, waxes, rubber solution, and more due to its ability to heat rapidly and efficiently using steam or hot oil. It can handle flows up to 500 GPM (114 m³/h).

Features & Benefits

• Rugged and reliable, yet economical
• Widest range of sizes and options available to suit almost any non-corrosive application
• Integral jacket chambers in the bracket and head surround the seal and pump internals for rapid & efficient heating using steam or hot oil

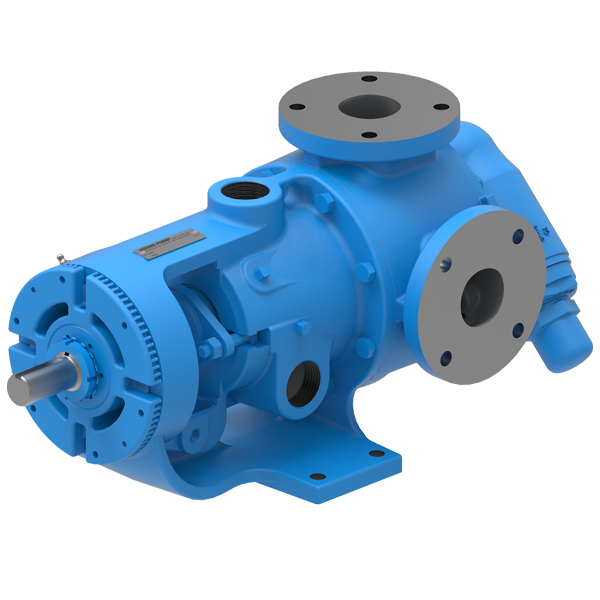

227A Series™ internal gear pump

The 227A Series™ internal gear pump is the ideal solution for soaps & surfactants, acids & caustics, and more because of its stainless steel construction for corrosion resistance over a wider pH range. It can handle flow rates up to 320 GPM (73 m³/h).

Features & Benefits

• All stainless steel construction, for corrosion resistance over a wider pH range
• Non-galling gear materials available for handling thin liquid applications
• Integral jacket chambers in the bracket and head surround the seal and pump internals to maintain a constant temperature, for rapid & efficient heating, or using steam, hot oil or water

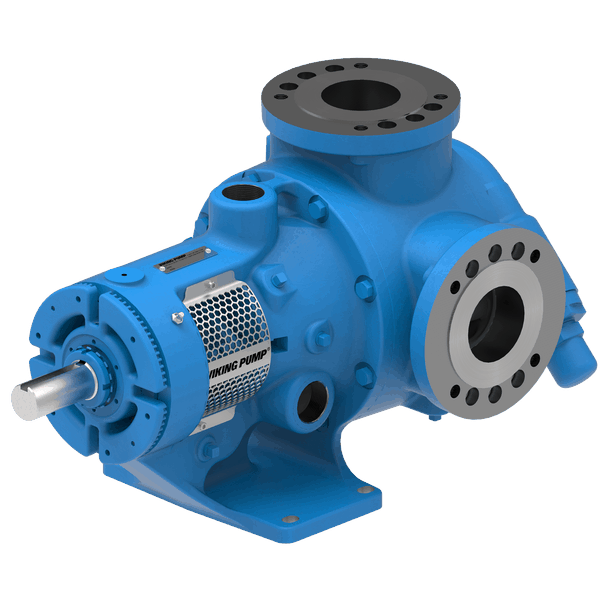

227C Series™ internal gear stainless steel pump

The 227C Series™ internal gear stainless steel pump is the flexible, simple, and adaptable solution for a wide range of applications. This new generation of pumps comes standard with internal jacketing, the U-Plus™ bracket sealed with packing, as well as the ProPort™ casing that accommodates a variety of port sizes and types depending on your needs. It can handle flow rates up to 320 GPM (73 m³/h).

Features & Benefits

• All stainless steel construction for corrosion resistance over a wider pH range
• ProPort™ casing utilizes mounting pads on each port designed to fit a variety of different flange types and sizes, enabling flexibility when connecting pumps to piping
• U-Plus™ bracket, available on H-QS sizes, offers seal location to be in the stuffing box or behind the rotor
• Integral jacketed chambers in bracket and head allow pumps to maintain constant temperature and consistent product flow
• Opposite porting on all pump sizes available

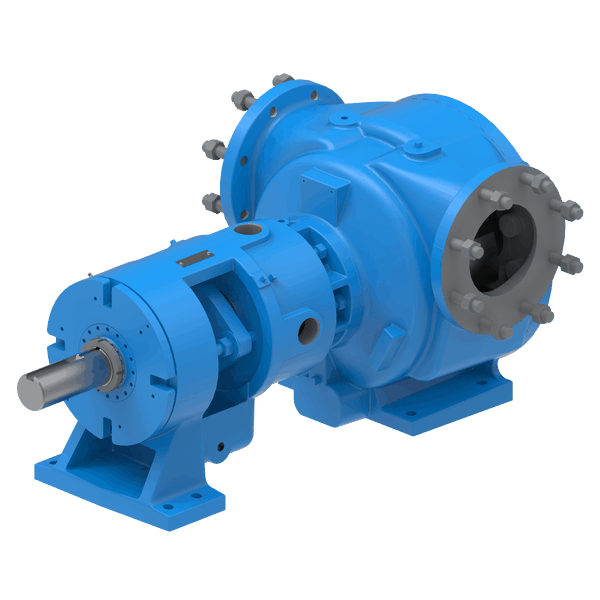

323A Series™ internal gear pump

The 323A Series™ internal gear pump is the perfect solution for crude oil, fuels, lube oil, and more because of its ability to withstand extremely high temperatures. It can handle flow rates from 500-1600 GPM (114 to 364 m³/h).

Features & Benefits

• For refinery and petrochemical applications
• Recommended for extremely high temperatures
• Widest range of sealing options available

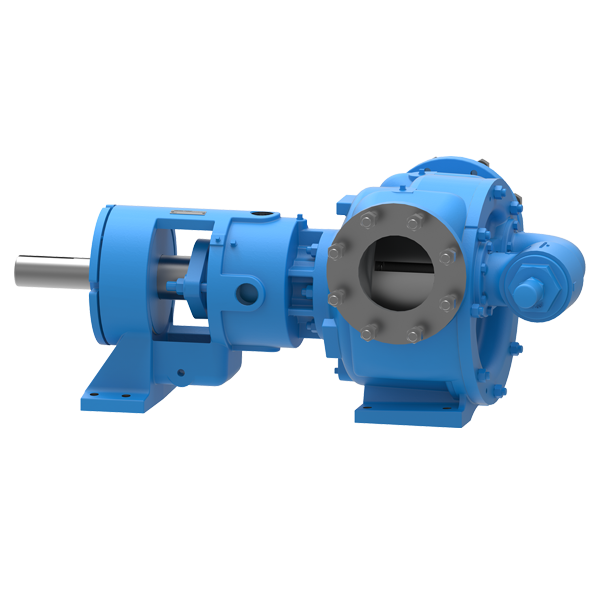

324A Series™ internal gear pump

The 324A Series™ internal gear pump is the ideal solution for any non-corrosive application like adhesives, asphalt, paints & inks, etc. It can handle flow rates between 500-1600 GPM (114 to 364 m³/h).

Features & Benefits

• Rugged and reliable, yet economical
• Widest range of sizes and options available to suit almost any non-corrosive application
• Tightest clearances for high efficiency and excellent priming capability

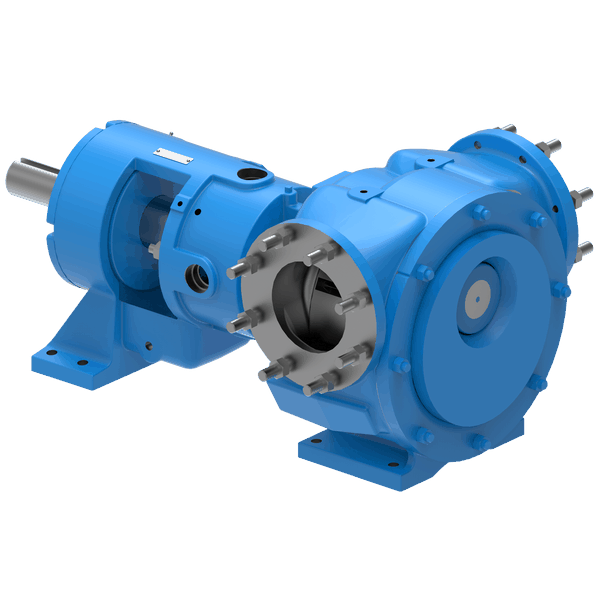

327A Series™ internal gear pump

The 327A Series™ internal gear pump is the perfect solution for soaps & surfactants, acids & caustics, and more because of its stainless steel construction for corrosion resistance over a wider pH range. It can handle flow rates from 500 to 1600 GPM (114 to 364 m³/h).

Features & Benefits

• All stainless steel construction for corrosion resistance over a wider pH range
• Non-galling gear materials available for handling thin liquid applications
• Enhanced bearing housing allows easy installation of packing, component and most cartridge mechanical seals without modification

Viking 1127C Series™ internal gear stainless steel pump

The 1127C Series™ internal gear stainless steel pump is the flexible, simple, and adaptable solution for a wide range of applications. This new generation of pumps comes standard with the patented O-Pro® Guard Seal for superior sealing capability, as well as the ProPort™ casing that accommodates a variety of port sizes and types depending on your needs. It can handle flow rates up to 320 GPM (73 m³/h).

Features & Benefits

• All stainless steel construction for corrosion resistance over a wider pH range
• ProPort™ casing utilizes mounting pads on each port designed to fit a variety of different flange types and sizes, enabling flexibility when connecting pumps to piping
• U-Plus™ bracket, available on H-QS sizes, offers seal location to be in the stuffing box or behind the rotor
• Opposite porting on all pump sizes available

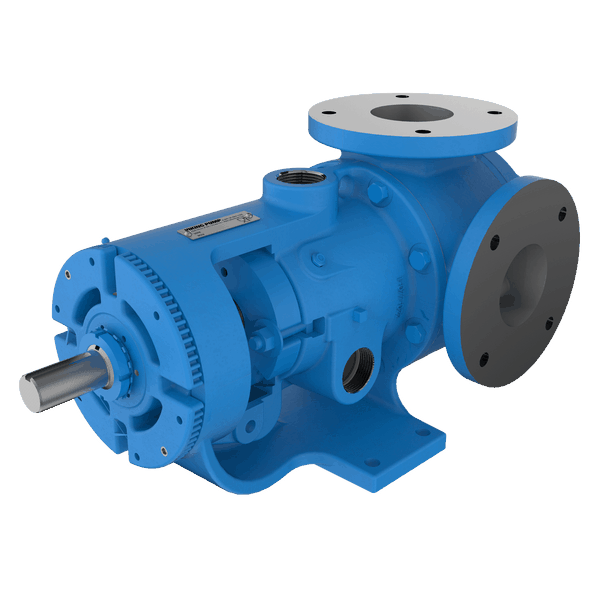

Viking 1227A Series™ internal gear pump with O-Pro® Seal

The 1227A Series™ internal gear pump with O-Pro® Seal technolog y is the perfect solution for molasses, sugar slurries, corn syrup, and more due to it's reliable sealing and easy maintenance. It can handle flows from 6 to 320 GPM (1.4 to 73 m³/h).

Features & Benefits

• 316 stainless steel construction for process fluid compatibility
• O-Pro® Guard provides a robust sealing solution for many markets
• O-Pro® Guard rebuildable design offers minimal downtime and low cost
• Integral jacketed chambers in bracket and head allow pumps to maintain constant temperature and consistent product flow

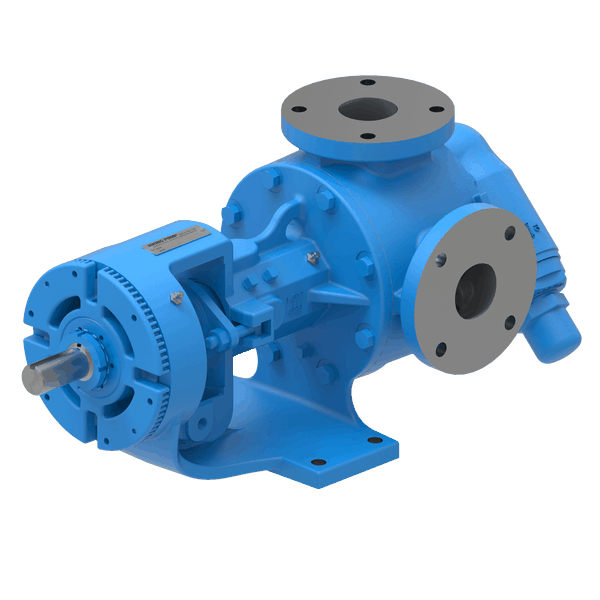

Viking 123A Series™ internal gear pump

The 123A Series™ internal gear pump is the ideal solution for crude oil, fuels, lube oil, and more because of its ability to handle a broad range of viscosities with constant flow rate. It can handle flows up to 500 GPM (114 m³/h).

Features & Benefits

• For refinery and petrochemical applications
• Recommended for extremely high temperatures
• Widest range of sealing options available

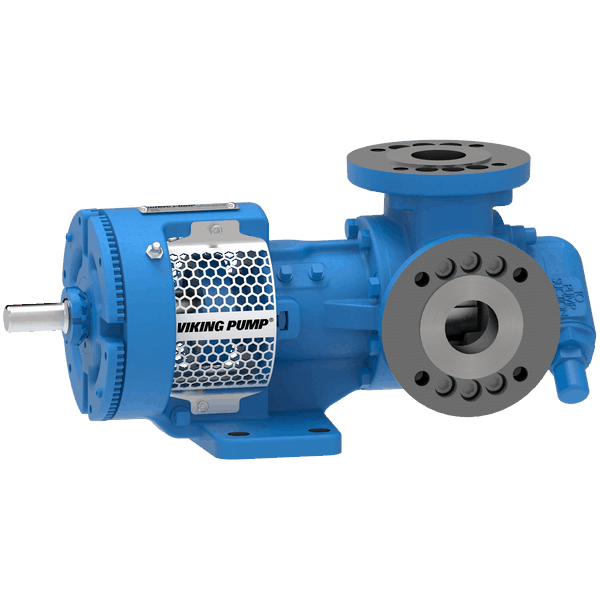

Viking 123C Series™ internal gear steel pump

The 123C Series™ internal gear steel pump is the flexible, simple, and adaptable solution for a wide range of applications. This new generation of universal pumps comes standard with the U-Plus™ bracket which accepts various sealing options, as well as the ProPort™ casing that accommodates a variety of port sizes and types depending on your needs. It can handle flow rates up to 500 GPM (114 m³/h).

Features & Benefits

• All steel construction for refinery and petrochemical applications
• Recommended for extremely high temperatures
• U-Plus Bracket, available on H-QS sizes, accepts a wide range of sealing options
• Opposite porting available on all pump sizes

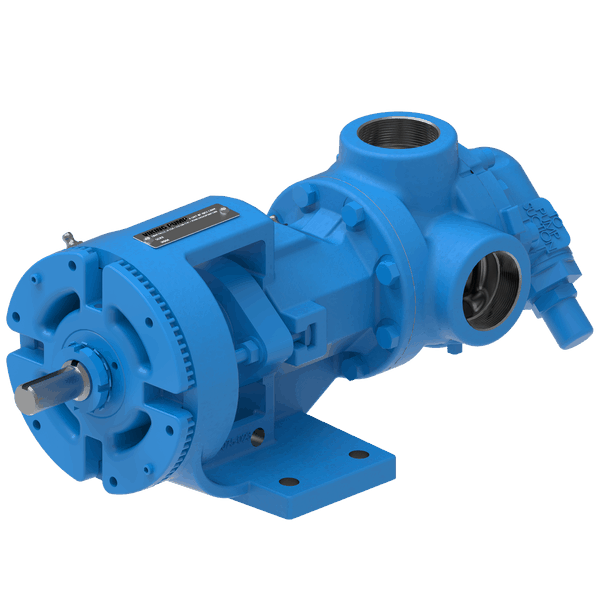

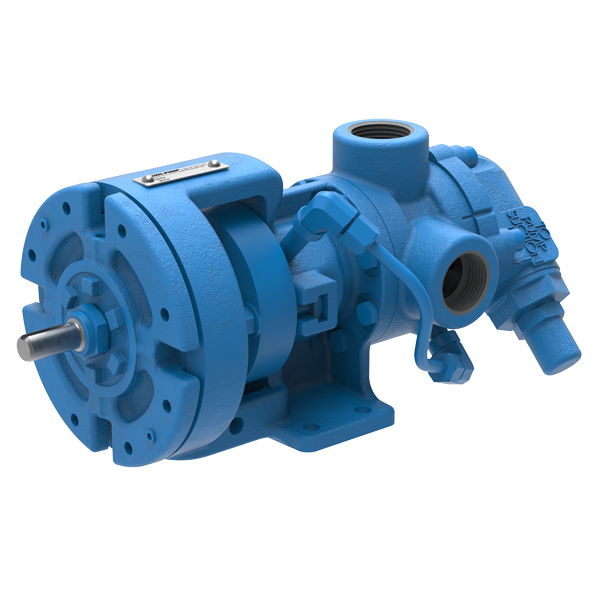

Viking 124A Series™ internal gear pump

The 124A Series™ internal gear pump is the ideal solution for adhesives, paints & inks, polymers, and more because of the broad range of available designs and other options. It can handle flows up to 500 GPM (114 m³/h).

Features & Benefits

• Rugged and reliable, yet economical
• Widest range of sizes and options available to suit almost any non-corrosive application
• Tightest clearances for high efficiency and excellent priming capability

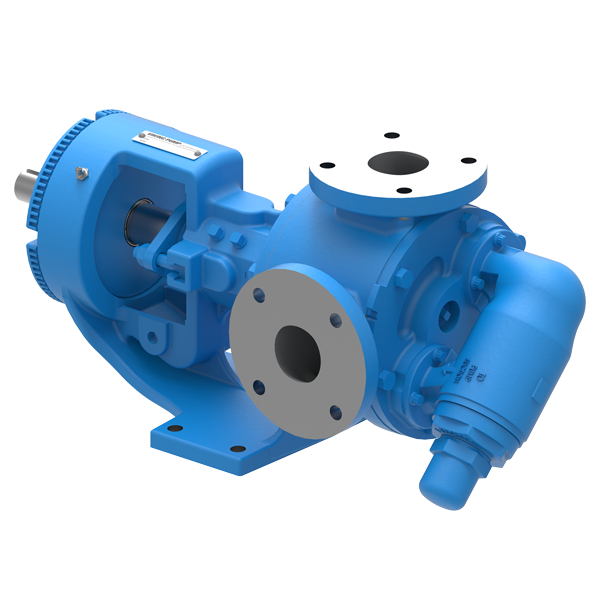

Viking 127A Series™ internal gear pump

The 127A Series™ internal gear pump is the ideal solution for soaps, detergents & surfactants, acids, and more due to the all stainless steel construction. It can handle flows up to 320 GPM (73 m³/h).

Features & Benefits

• All stainless steel construction for corrosion resistance over a wider pH range
• Non-galling gear materials available for handling thin liquid applications
• Enhanced bearing housing allows easy installation of packing, component and most cartridge mechanical seals without modification

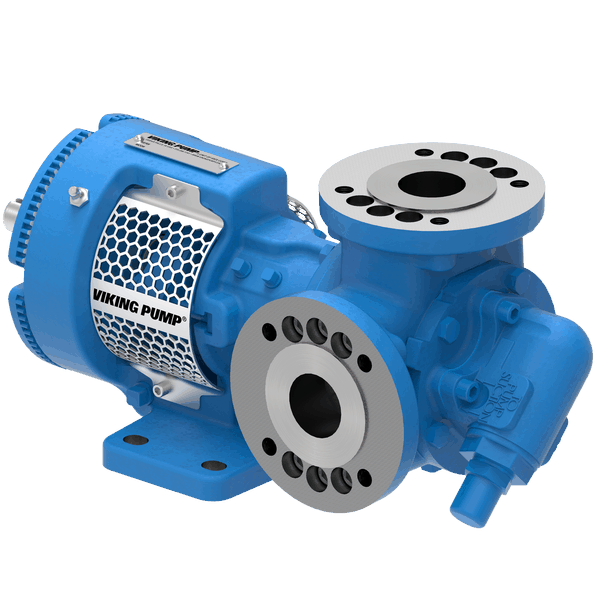

Viking 127C Series™ internal gear stainless steel pump

The 127C Series™ internal gear stainless steel pump is the flexible, simple, and adaptable solution for a wide range of applications. This new generation of pumps comes standard with the U-Plus™ bracket sealed with packing, O-Pro® Guard Seal, as well as the ProPort™ casing that accommodates a variety of port sizes and types depending on your needs. It can handle flow rates up to 320 GPM (73 m³/h).

Features & Benefits

•  All stainless steel construction for corrosion resistance over a wider pH range
•  ProPort™ casing utilizes mounting pads on each port designed to fit a variety of different flange types and sizes, enabling flexibility when connecting pumps to piping
•  U-Plus™ bracket, available on H-QS sizes, offers seal location to be in the stuffing box or behind the rotor
• Opposite porting available on all pump sizes

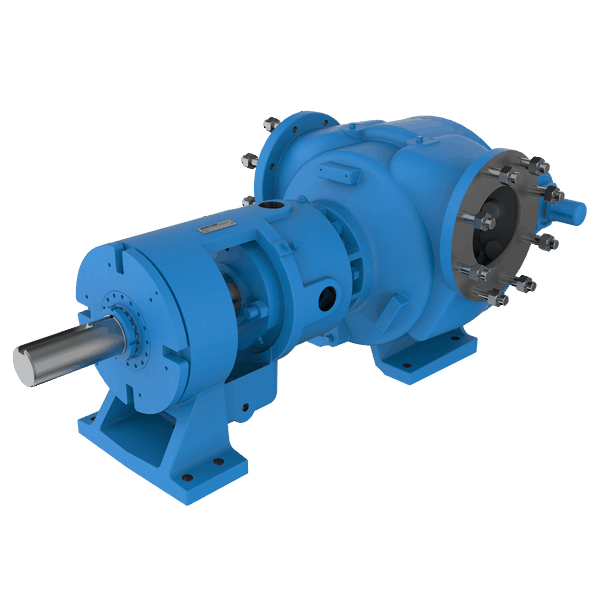

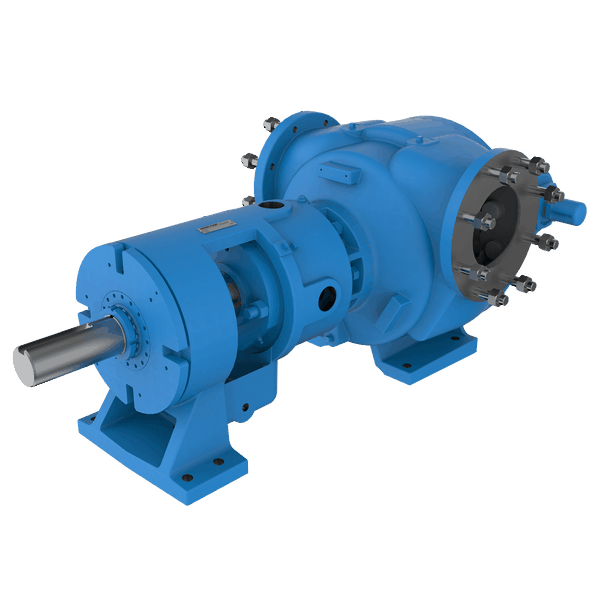

Viking 1324A Series™ internal gear pump

The 1324A Series™ internal gear pump with O-Pro® Seal technology is the perfect solution for liquid sugars, refined fuels, edible oils, and more due to it's reliable sealing as well as easy maintenance. It can handle flows from 500 to 1500 GPM (125 to 340 m³/h).

Features & Benefits

• Rugged design provides superior performance in many markets
• Tight clearances offer high efficiency and excellent priming capabilities
• O-Pro® Barrier combines reliable sealing with easy maintenance
• O-Pro® Barrier is standard with FKM elastomers

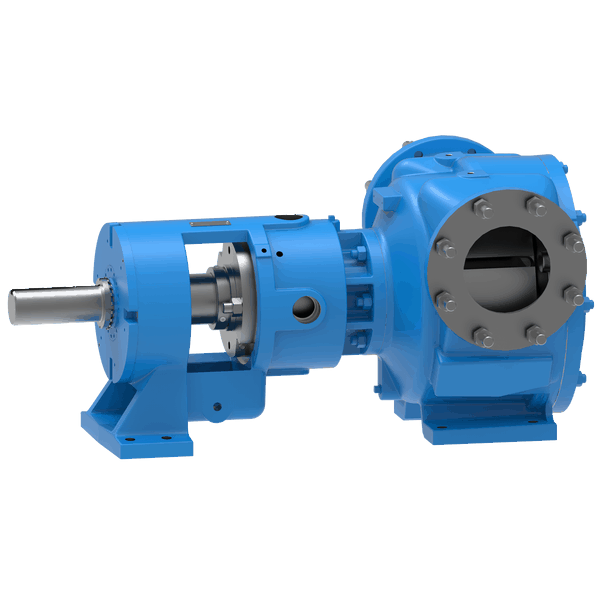

Viking 1327A Series™ internal gear pump

The 1327A Series™ internal gear pump with O-Pro® Seal technology is the perfect solution for peanut butter, paints & inks, edible oils, and more due to it's reliable sealing and easy maintenance. It can handle flows from 175 to 1,280 GPM (108 to 290 m³/h).

Features & Benefits

• 316 stainless steel construction for process fluid compatibility
• O-Pro® Guard provides a robust sealing solution for many markets
• O-Pro® Guard rebuildable design offers minimal downtime and low cost

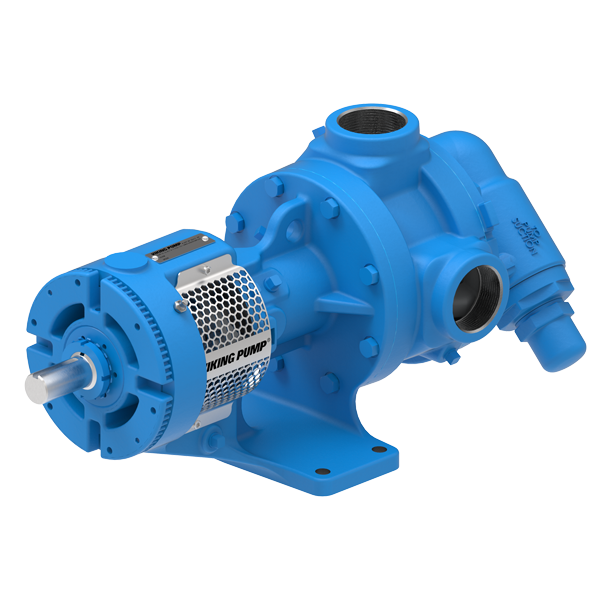

Viking 124C Series™ internal gear pump

The 124C Series™ internal gear pump is Viking Pump's most versatile internal gear pump, engineered for superior flexibility and performance. Featuring the innovative U-Plus™ bracket design, these pumps come standard with packing but have the ability to adapt to your ideal sealing needs.

Built for adaptability, the 124C Series™ is fully compatible with ProPort™ casings, offering various flange types, sizes, and port arrangements for easy system integration. It is ideal for applications such as lubrication systems, hydraulic oil circulation, chemical processing, fuel transfer, and more.

Features & Benefits

• Positive displacement internal gear pumping principle handles a wide range of viscosities with constant flow rate
• U-Plus™ Bracket adapts the pump's sealing solution to fit your needs.
• Optional ProPort™ Casing offers a variety of port sizes and types, simplifying integration into your existing piping systems
• Stainless steel window guards offer protection from rotation parts

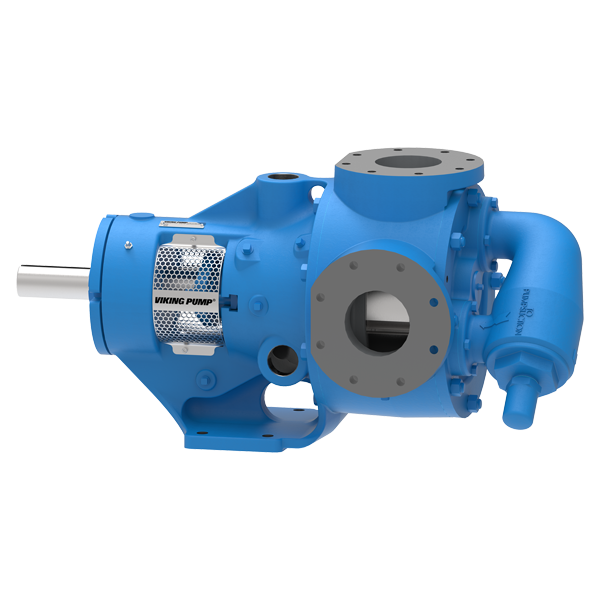

Viking 224C Series™ internal gear pump

The 224C Series™ internal gear pump is part of Viking Pump's Universal Product Line, delivering unmatched flexibility for demanding fluid handling applications. Featuring the innovative U-Plus™ bracket design, these pumps come standard with packing while also offering the adaptability to meet your ideal configuration.

Engineered for performance, the 224C Series™ comes standard with a jacketed head and bracket for superior thermal control and process versatility. Fully compatible with ProPort™ casings, these pumps provide multiple flange types, sizes, and port arrangements for seamless system integration. Ideal for applications such as chemical processing, lubrication systems, fuel transfer, and more, the 224C Series™ ensures reliable operation across diverse conditions.

Features & Benefits

• Seal options include packing, O-Pro® Barrier seal, single component seals, cartridge lip seals, and cartridge single and double mechanical seals thanks to the U-Plus™ Bracket which comes standard
• Jacketed pumps provide a cavity, or jacket, on the external wall of the pump through which steam or heat transfer liquid can be passed to control the temperature of the fluid in the pump.
• Viking Pump's most adaptable line of internal gear pumps provide numerous design and material options to meet diverse application needs.

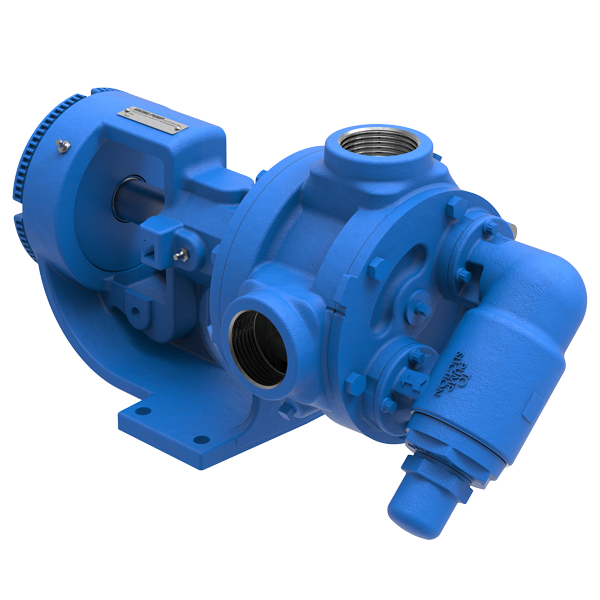

Viking 4124B Series™ internal gear pump

The 4124B Series™ internal gear pump is the perfect solution for paints & inks, polymers, resins, and more due to its the broad range of available designs and other options. It can handle flows up to 8 GPM (1.8 m³/h).

Features & Benefits

• Rugged and reliable, yet economical
• Tightest clearances for high efficiency and excellent priming capability

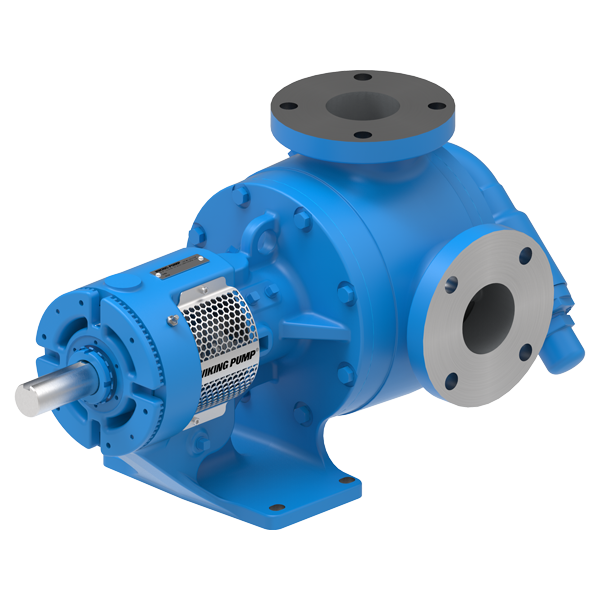

Viking 4124C Series™ internal gear pump

The 4124C Series™ internal gear pump is a trusted performer in Viking Pump's Universal Product Line, delivering exceptional reliability and efficiency for a wide range of fluid handling applications. Featuring the innovative U-Plus™ bracket design, these pumps come standard with mechanical seals while offering the flexibility to adapt to your preferred sealing solution.

Built for versatility, the 4124C Series™ supports multiple configuration options and is fully compatible with ProPort™ casings, providing a variety of flange types, sizes, and port arrangements for simplified system integration. Ideal for applications such as lubrication systems, hydraulic oil circulation, chemical processing, fuel transfer, and more, the 4124C Series™ ensures consistent performance across diverse operating conditions.

Features & Benefits

• Positive displacement internal gear pumping principle handles a wide range of viscosities with constant flow rate
• U-Plus™ Bracket adapts the pump's sealing solution to fit your needs.
• Optional ProPort™ Casing offers a variety of port sizes and types, simplifying integration into your existing piping systems
• Stainless steel window guards offer protection from rotation parts

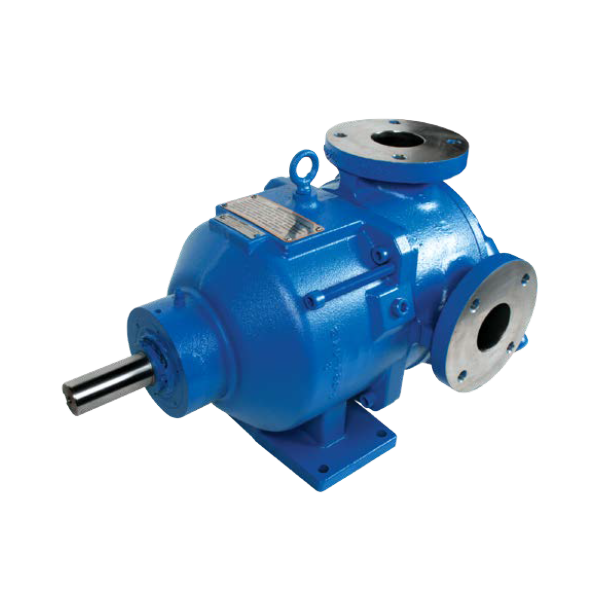

Viking 8124A Series™ internal gear pump

The 8124A Series™ internal gear pump is the perfect solution for petrochemicals, isocyanates, polyols, and more due to the sealless mag drive which keeps hazardous liquids contained. It can handle flows up to 500 GPM (114 m³/h).

Features & Benefits

• Sealless mag drive eliminates the shaft seal to provide the highest level of liquid and vapor containment
• All liquid and vapor is hermetically sealed in the pump
• Used especially for hazardous and difficult-to-seal liquids

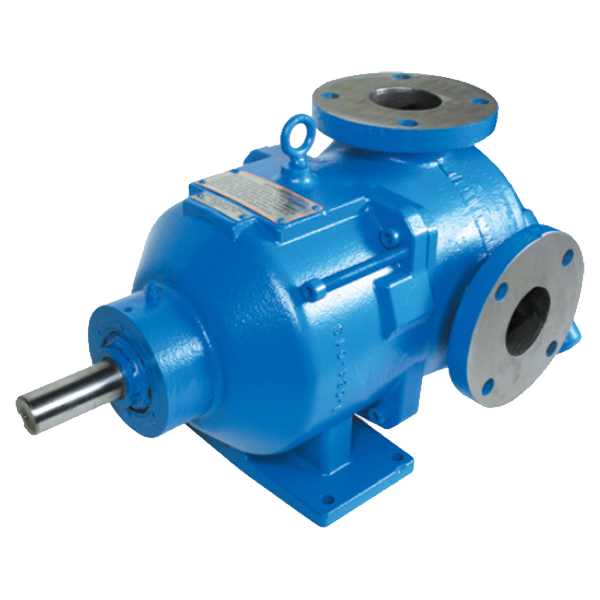

Viking 8123A Series™ internal gear pump

The 8123A Series™ internal gear pump is the ideal solution for  petrochemicals, isocyanates, polyols, and more due to the sealless mag drive which keeps hazardous liquids contained. It can handle flows up to 500 GPM (114 m³/h).

Features & Benefits

• Sealless mag drive eliminates the shaft seal to provide the highest level of liquid and vapor containment
• All liquid and vapor is hermetically sealed in the pump
• Used especially for hazardous and difficult-to-seal liquids

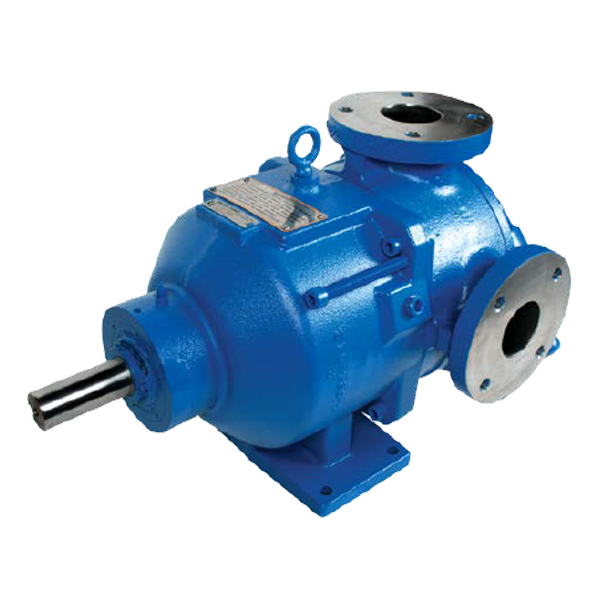

Viking 8127A Series™ internal gear pump

The 8127A Series™ internal gear pump is the perfect solution for petrochemicals, isocyanates, polyols, and more due to the sealless mag drive which keeps hazardous liquids contained. It can handle flows up to 500 GPM (114 m³/h).

Features & Benefits

• Sealless mag drive eliminates the shaft seal to provide the highest level of liquid and vapor containment
• All liquid and vapor is hermetically sealed in the pump
• Used especially for hazardous and difficult-to-seal liquids

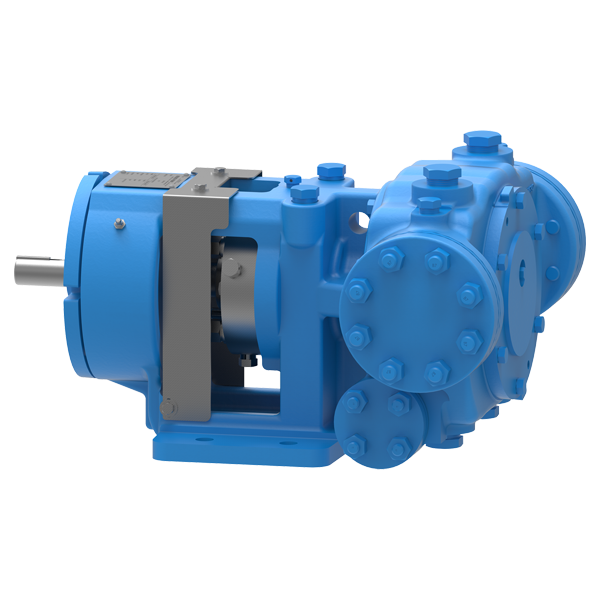

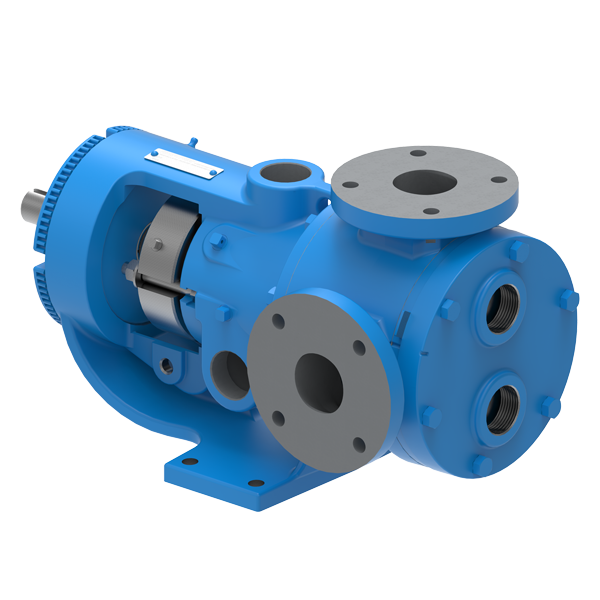

Viking 4223AX Series™ internal gear pump

The 4223AX Series™ internal gear pump is the ideal solution for crude oils (light, heavy, and sour), fuel oils, petrochemicals, and more. It comes with API 682 Category 1, 2 or 3 cartridge seals with optional API seal support plans.

Features & Benefits

• Conforms fully to API 676 3rd Edition, NO EXCEPTIONS
• API 682 Category 1, 2 or 3 cartridge seals with optional API seal support plans
• Normalized and tempered steel casting construction

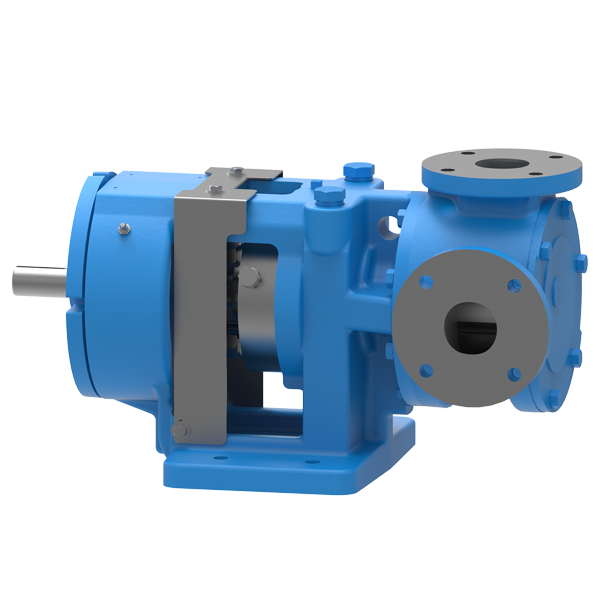

Viking 4223AA Series™ internal gear API pump

The 4223AA Series™ internal gear API pump is the ideal solution for your upstream, midstream, and downstream liquids due to its reduced risk of leakage, reduced risk of VOC emissions, and reduced risk of corrosion failure. It can handle flows up to 500 GPM (114 m³/h).

Features & Benefits

• Static o-ring sealed joints provided improved sealing vs. flat gaskets
• Additional metal thickness around tapped holes at least half the bolt diameter
• Non-Destructive evaluation of castings to ensure quality

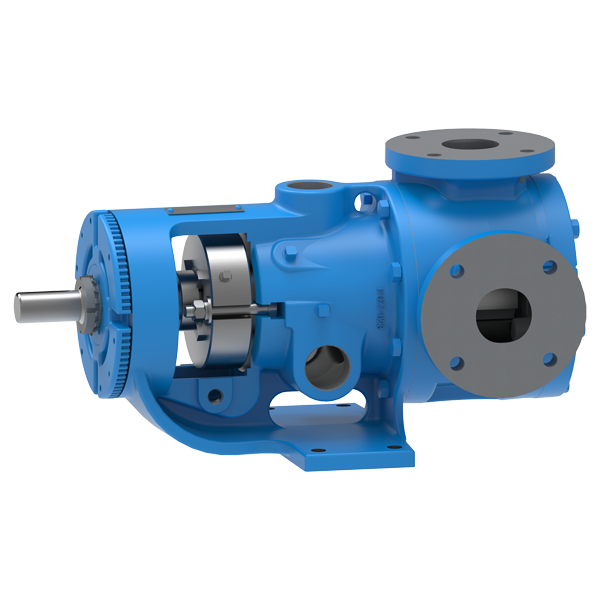

Viking 4227AX Series™ internal gear pump

The 4227AX Series™ internal gear pump is the ideal solution for your oil and gas applications. This stainless steel option is fully compliant API 676 pump with 4 bolt mount API 682 cartridge seals. It can handle flows up to 1,600 GPM (363 m³/h).

Features & Benefits

• Internal gear pumps are rotary positive displacement pumps which move the same amount of fluid with each revolution of the shaft
• Flow rate is directly proportional on the speed, which enables easy control over the entire performance range using variable speed drives
• System pressure has minimal impact on flow rate making this an excellent solution for continuous processes where multiple streams are metered together

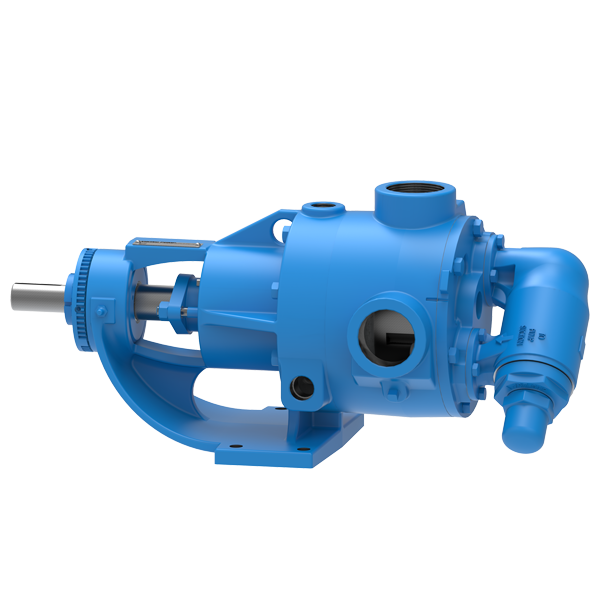

Viking 724 Series™ internal gear pump

The 724 Series™ internal gear pump is the ideal solution for chemical applications due to its stainless steel construction. This pump is jacketed for steam, hot oil, or hot water circulation to maintain a uniform temperature around the sealing area. It can handle capacities up to 5  GPM (1 m³/h).

Features & Benefits

• Cast iron mounting bracket lowers overall pump cost (316SS wetted parts)
• Jacketed bracket provides the ability to maintain uniform temperature to sealing area

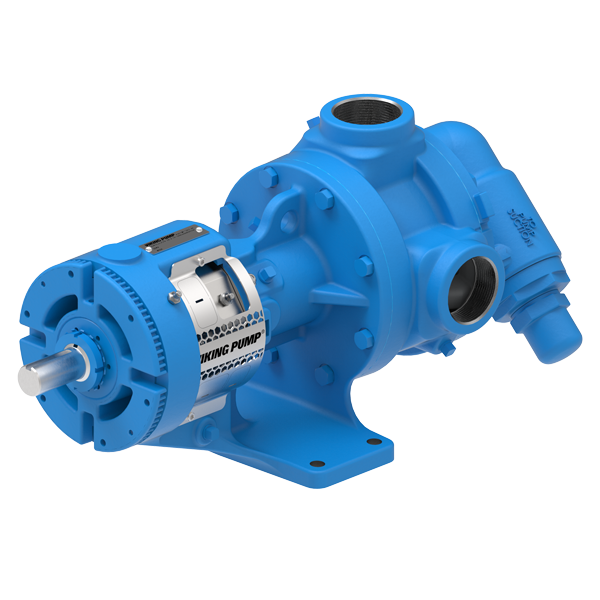

Viking 1124C Series™ internal gear pump

The 1124C Series™ internal gear pump is a cornerstone of Viking Pump's Universal Product Line, delivering exceptional reliability and versatility for a wide range of fluid handling applications. Featuring the innovative U-Plus™ bracket design, these pumps come standard with Viking's patented O-Pro® seal technology but have the ability to adapt to your ideal sealing needs.

Designed for adaptability, the 1124C Series™ offers multiple configuration choices and is fully compatible with ProPort™ casings, providing flexible flange types, sizes, and port arrangements for seamless system integration. Ideal for applications such as lubrication systems, hydraulic oil circulation, chemical processing, fuel transfer, and more, the 1124C Series™ ensures dependable performance across diverse operating conditions.

Features & Benefits

• Positive displacement internal gear pumping principle handles a wide range of viscosities with constant flow rate
• U-Plus™ Bracket adapts the pump's sealing solution to fit your needs.
• Optional ProPort™ Casing offers a variety of port sizes and types, simplifying integration into your existing piping systems
• Stainless steel window guards offer protection from rotation parts

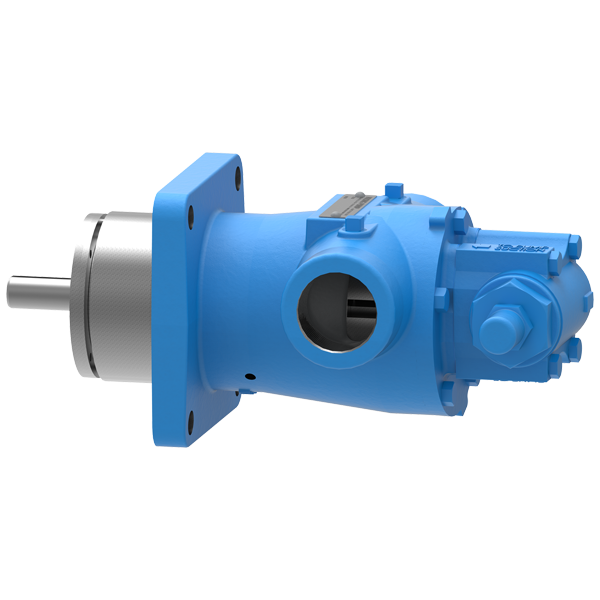

Viking 495 Series™ internal gear pump

The 495 Series™ internal gear pump is the perfect solution for refined fuels, lube oils, rotating equipment lubrication, and more due to its high speed operation for thin to moderate viscosity applications. It can handle flows up to 115 GPM (26 m³/h).

Features & Benefits

• The most compact gear pump series available to fit tight space constraints
• High speed operation for the most economical pump option for thin to moderate viscosity applications
• Vertical mounting options to further reduce the unit footprint

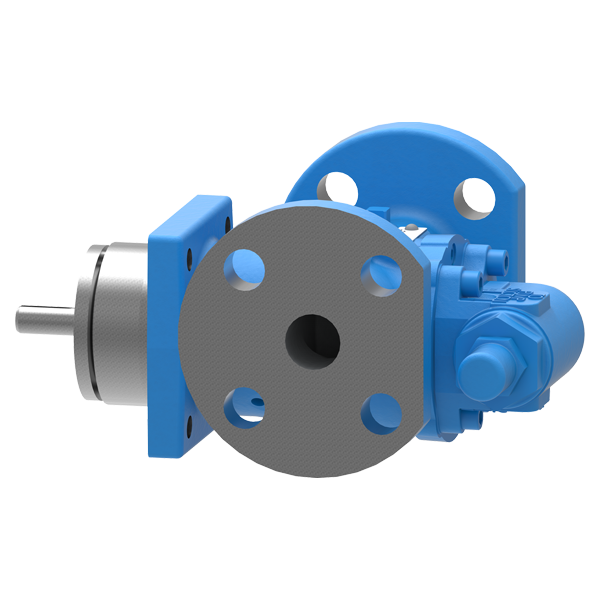

Viking 493 Series™ internal gear pump

The 493 Series™ internal gear pump is the ideal solution for compressor lubrication, fuels, and lube oils due to its high speed operation and ability to withstand high working pressures. It can handle flows up to 75 GPM (17 m³/h).

Features & Benefits

• Close coupled to fit tight space constraints with vertical mount options for reduced unit footprint
• High speed operation for economical steel pump offering
• High working pressures for compressor lubrication applications
• Class 300 flanges standard on all sizes and models

Viking 4197 Series™ internal gear pump

The 4197 Series™ internal gear pump is the ideal solution for compressor lubrication, fuels, and lube oils due to its high speed operation and ability to withstand high working pressures. It can handle flows up to 75 GPM (17 m³/h).

Features & Benefits

• For corrosion resistance over a wider pH range
• Non-galling gear materials standard for handling thin liquid applications
• Compact gear pump series to fit tight space constraints

Viking 895 Series™ internal gear pump

The 895 Series™ internal gear pump is the ideal solution for refined fuels, lube oils, rotating equipment lubrication, and more due to the sealless mag drive which provides the highest level of liquid and vapor containment. It can handle flows up to 75 GPM (17 m³/h).

Features & Benefits

• Sealless mag drive eliminates the shaft seal to provide the highest level of liquid and vapor containment
• All liquid and vapor is hermetically sealed in the pump
• Used especially for hazardous and difficult-to-seal liquids
• Optional high pressure canister for inlet pressures up to 2,250 PSI (155 BAR)

Viking 897 Series™ internal gear pump

The 897 Series™ internal gear pump is the perfect solution for refined fuels, lube oils, rotating equipment lubrication, and more due to the sealless mag drive which provides the highest level of liquid and vapor containment. It can handle flows up to 75 GPM (17 m³/h).

Features & Benefits

• Sealless mag drive eliminates the shaft seal to provide the highest level of liquid and vapor containment
• All liquid and vapor is hermetically sealed in the pump
• Used especially for hazardous and difficult-to-seal liquids
• Optional high pressure canister for inlet pressures up to 2,250 PSI (155 BAR)

Viking 32 Series™ internal gear pump

The 32 Series™ internal gear pump is the ideal solution for light, medium and intermittent service handling of a variety of liquids like lube oil and fuel oil. It can handle up to 450 GPM (102 m³/h).

Features & Benefits

• Relief valve on casing or head
• Steam jacketed head
• Upright, opposite & right angle ports
• Packing seal

Viking 432 Series™ internal gear pump

The 432 Series™ internal gear pump is the ideal solution for fuel oils, glycols, lube oils, and more liquids. It can handle up to 20 GPM (0 to 4.5 m³/h).

Features & Benefits

• Relief valve on casing or head
• Steam jacketed head
• Upright, opposite & right angle ports
• Mechanical seal

Viking 456 Series™ internal gear pump

The 456 Series™ internal gear pump is the ideal solution for fuel oil, glycol, and lube oil. It can handle capacities up to 3 GPM (0.7 m³/h).

Features & Benefits

• Relief Valve Standard
  • Permits bypassing of liquid from discharge back to suction side of pump.
  • Prevents building up excessive pressure in discharge line.
• Mechanical Seal
  • All models are furnished with mechanical seal.
  • The seal is a rotary type packaged unit that is simple and self-adjusting

Viking 75 Series™ internal gear pump

The 75 Series™ internal gear pump is the ideal solution for filtering, circulating, transferring, and lubricating because of its positive, smooth delivery of product. It can handle flows up to 30 GPM (7 m³/h).

Features & Benefits

• The close-coupled pump size is cut to a minimum, saving space
• Mounts directly to the motor, no drive equipment needed
• Simplified rotor retention system, economical for medium duty applications

Viking 475 Series™ internal gear pump

The 475 Series™ internal gear pump is the ideal solution for filtering, circulating, transferring, and lubricating because of its positive, smooth delivery of product. It can handle flows up to 30 GPM (7 m³/h).

Features & Benefits

• The close-coupled pump size is cut to a minimum, saving space
• Mounts directly to the motor, no drive equipment needed
• Simplified rotor retention system, economical for medium duty applications

Viking LVP Series™ vane pump

The LVP Series™ vane pump is the perfect solution for thin, corrosive industrial liquids, flammable liquids which require corrosion protection and applications where pressures or vacuum requirements exceed other pumps’ capabilities. It can handle flows up to 160 GPM (36 m³/h).

Features & Benefits

• Vane pump design offers ANSI or DIN flanges, and IEC or NEMA motor mounts to conform to international standards for enhanced application flexibility
• High pressure and high efficiency with thin liquids
• 20 minute inline vane replacement reduces scheduled downtime
• Harder components than other vane pumps extend pump life

Viking CMD Series™ external gear pump

The CMD Series™ external gear pump is the ideal solution for many highly corrosive clean liquids used in the chemical processing, chemical dosing, pulp and paper and industrial water treatment industries. It can handle flows from 0.4 to 20 GMP (1.5 to 75 LPM).

Features & Benefits

• Inert composite materials for universal chemical compatibility
• Compact design
• Sealless mag drive
• Entirely non-metallic
• High repeatability for chemical metering

Viking 34 Series™ internal gear pump

The 34 Series™ internal gear pump is the perfect solution for asphalt, bitumen, tar, and more due to its robust cast iron construction and jacketing to rapidly deliver heat. It can handle flows up to 450 GPM (102 m³/h).

Features & Benefits

• Fully jacketed pump to rapidly deliver heat directly to the stuffing box, casing and head
• Jacketing suitable for hot oil or steam for enhanced application flexibility
• Simple, economical design for transfer and delivery of asphalt and bitumen at low to moderate pressures

Viking 124E Series™ internal gear electric heated pump

The 124E Series™ internal gear electric heated pump is the perfect solution for your asphalt needs because it warms the asphalt within the pump prior to startup. It can hold capacities up to 500 GPM (114 m³/h).

Features & Benefits

• Reduced installation & maintenance expense
  • Lower installation costs in remote locations when steam or hot oil is not available or requires long piping runs
  • Provides expansion flexibility
  • Eliminates the hot oil or steam system
  • Simplified service due to the lack of hot oil or steam connections
• Reduce energy costs
  • Eliminates heat loss through piping
  • Reduces environmental costs by eliminating hot oil or steam piping

Viking 324E Series™ internal gear electric heated pump

The 324E Series™ internal gear electric heated pump is the perfect solution for your asphalt needs because it warms the asphalt within the pump prior to startup. It can hold capacities up to 685 GPM (155 m³/h).

Features & Benefits

• Reduced installation & maintenance expense
  • Lower installation costs in remote locations when steam or hot oil is not available or requires long piping runs
  • Provides expansion flexibility
  • Eliminates the hot oil or steam system
  • Simplified service due to the lack of hot oil or steam connections
• Reduce energy costs
  • Eliminates heat loss through piping
  • Reduces environmental costs by eliminating hot oil or steam piping

Viking 4924A Series™ internal gear pump

The 4924A Series™ internal gear pump is the perfect solution for ammonia pumping (refrigerant R-717) due to efficiently keeping the ammonia in liquid form to make removing heat easier. It can handle capacities from 10 to 60 GPM (2.3 to 13.6 m³/h).

Features & Benefits

• Cast Iron
• Double mechanical seal with barrier fluid for superior containment
• Five sizes from 10 to 60 GPM

Viking 4624B Series™ internal gear pump

The 4624B Series™ internal gear pump is the idea solution for inks, resin, starch, and more due to its hardened parts in key wear areas. It can handle flows up to 1.5 GPM (0.34 m³/h)

Features & Benefits

• Ultra-hard tungsten carbide idler pin and tungsten carbide idler bushing minimize wear in this key area, since a constant supply of abrasive material is flowing through the pumping elements.
• The grease-lubricated bracket bushing is not contacted by the pumped liquid, for long life. The pump is re-greasable, with a lip seal at the stuffing box.

Viking 432-X Series™ internal gear pump

The 432-X Series™ internal gear pump is the ideal solution fuel oils, glycols, lube oils, and more liquids. It can handle up to 20 GPM (0 to 4.5 m³/h).

Features & Benefits

• Relief valve on casing or head
• Right angle ports
• Mechanical seal
• UL343 listed for the handling of various fuel oils

Viking SG-X Series™ motor speed pump

The SG-X Series™ motor speed pump is UL listed for fuel oil, providing the best solution for this liquid. It can handle flows up to 11 GPM (42 LPM).

Features & Benefits

• Needle bearings provide high pressure capabilities, sleeve bearing options available
• Close-coupled motor mount or foot bracket options to match space or motor requirements
• Capacities up to 11 GPM

Viking RTPe Series™ rotary lobe pump

The RTPe Series™ rotary lobe pump is the ideal solution for your chemical tanker system. This stainless steel pump can handle caustics, corrosives, fertilizers, and more without fear of compromising the integrity of the chemicals. It can handle flows up to 264 GPM (60m³/h).

Features & Benefits

Cleanability

• The simple design behind the rotor makes strip cleaning easy and fast
• Choose the cleaning process that fits your needs: COP (Clean Out of Place) or CIP (Clean In Place)

Ease of Maintenance

• Innovative front loading seal design enables quick inspection and easy servicing
• Sealed gearcase with long-life lubrication eliminates oil inspection and filling
• Easy to service design requires no special tools for disassembly and eliminates need for end clearance adjustments

Performance

• Wide range of chemical compatibility
• Efficiently handles both low and high viscosity liquids with improved pressure capabilities for faster loading and unloading
• Excellent displacement/weight ratios, which means more in the tank and less in the cabinet (1 l/rev. / 0.264 USG/rev.)
• Precision helical gears, rotors and shaft design, with optimized bearing position, minimize overhung load – extending seal & bearing life

Viking 4197-SEP Series™ internal gear

The 4197-SEP Series™ internal gear ethanol extraction pump is the perfect solution for the challenging cold temperatures in the hemp market. It has superior self-priming capabilities and designed for continuous or intermittent duty cycle. This pump can handle flows up to 75 GPM (17 m³/h).

Features & Benefits

• Superior self-priming capabilities
• Low temperature mechanical seal
• Quiet pulsation-free flow

Viking Gen 2 GB-414 Series™ Pump

The GB-414 Series™ is the ultimate solution for pipeline injection applications. The rebuildable design is a direct drop-in replacement for Viking Pump's Gen 2 GP-414 Series™ and features new advanced materials on critical internal wear surfaces. It can handle flows up to 210 GPM.

Features & Benefits

Rebuildable Design

• All internal wear components are easily replaceable
• Simple disassembly and reassembly process saves time and money
• Complete rebuild kit brings the pump back to as-new operating condition

Upgraded and Reliable Sealing Solution

• Type 2 bellows seal with standard 200 PSI inlet rating does not require the pump or motor placement to be moved for a seal change
• Robust axial thrust control bearing reduces premature seal failure due to elevated inlet pressure, starts, stops, and other unique application conditions

Modular Port Design

• Standard 180? ports with weld neck adapters to accommodate the flange of your choice
• Common Port Location (CPL) feature allows for installation of lower flowrate pumps when well production decreases without welding or piping modifications

Compact Footprint

• 7’ unit length on largest pump and motor assembly
• Motor speed operation eliminates the need for gear reducers or belt drives
• Units include small, rigid formed steel baseplate complete with spacer coupling and coupling guard

Viking GB-410 Series™ external gear pump

The GB-410 Series™ external gear pump is the ultimate durable, reliable, field-rebuildable solution for your high-pressure oil and gas processing needs. With its hardened parts for enhanced wear resistance, it was engineered specifically for overcoming the challenges of upstream and midstream oil and gas processing applications such as natural gas & CO2 dehydration (glycol), LACT – pipeline injection, gas sweetening (amines), pigging, and condensate transfer.

Features & Benefits

HIGH TEMPERATURE RATING

• All sizes rated to handle temperatures of 350 F to cover upset conditions
• Pumps engineered to handle the high temperature delta between pump & glycol on start-up
• Pumps capable of over 225°F temperature differential between pump and glycol temps

ROBUST DURABLE PUMP DESIGN

• Fewer moving wear components for robust, long-lasting field performance
• New advanced hardened materials on critical internal wear surfaces
• Enhanced wear resistance and durability of dry-run, abrasives, and upset conditions
• Smooth flow with no pulsation dampening equipment required

REBUILDABLE DESIGN

• All wear components are easily replaceable and available in affordable Rebuild Kit
• Simple disassembly & reassembly process for easy field service and repair, saving time and money

RELIABLE MECHANICAL SEAL SOLUTIONS

• Less susceptible to leakage and robust long-lasting design
• Back pull-out seal design allows for easy seal changes in the field
• Axial thrust control standard with single component seal design

EASY FIELD INSTALLATION

• Jaw Type Coupling eliminates the mess and maintenance of an oil bath
• Motor mounting capable for easy drop-in replacement on C-Face motors up to 75 HP
• Motor speed operation eliminates gear reducers or belt drives
• Standard 180 degree SAE ports with bolt-on NPT or Weld-Neck Adapters to accommodate connection type of your choice
• Pump can be plumbed using hard or flexible piping

ALL PUMPS FACTORY TESTED

• Each pump performance and hydro tested with state-of-the-art testing equipment prior to shipment

Viking 4123A Series™ internal gear pump

The 4123A Series™ internal gear pump is the ideal solution for refinery and petrochemical applications. It can withstand extremely high temperatures and comes with the widest range of sealing options. It can handle flows up to 1,600 GMP (363 m³/h).

Features & Benefits

• For refinery and petrochemical applications
• Recommended for extremely high temperatures
• Widest range of sealing options available

Viking 4127A Series™ internal gear pump

The 4127A Series™ internal gear pump is the ideal solution for acids & caustics, water-based liquids, and more. The all stainless steel construction resists corrosion over a wider pH range. It can handle flows up to 320 GPM (73 m³/h).

Features & Benefits

• All stainless steel construction for corrosion resistance over a wider pH range
• Non-galling gear materials available for handling thin liquid applications
• Enhanced bearing housing allows easy installation of packing, component and most cartridge mechanical seals without modification

Viking 4223A Series™ internal gear pump

The 4223A Series™ internal gear pump is the perfect solution for lube oil, rubber solution, waxes, and more because of it's ability to withstand extremely high temperatures. It can handle flows up to 500 GPM (114 m³/h).

Features & Benefits

• For refinery and petrochemical applications
• Recommended for extremely high temperatures
• Widest range of sealing options available
• Integral jacket chambers in the bracket and head surround the seal  and pump internals for rapid & efficient heating, or to maintain a constant temperature using steam, hot oil or water

Viking 4227A Series™ internal gear pump

The 4227A Series™ internal gear pump is the ideal solution for soaps & surfactants, acids & caustics, and more because of its stainless steel construction for corrosion resistance over a wider pH range. It can handle flow rates up to 320 GPM (73 m³/h).

Features & Benefits

• All stainless steel construction, for corrosion resistance over a wider pH range
• Non-galling gear materials available for handling thin liquid applications
• Integral jacket chambers in the bracket and head surround the seal and pump internals to maintain a constant temperature, for rapid & efficient heating, or using steam, hot oil or water

Viking 4227AA Series™ internal gear pump

The 4227AA Series™ internal gear pump is the ideal solution for your oil and gas applications. This stainless steel option has 4 bolt mount API 682 cartridge seals with minor clarifications to the API 676 standard. It can handle flows up to 1,600 GPM (363 m³/h).

Features & Benefits

• Internal gear pumps are rotary positive displacement pumps which move the same amount of fluid with each revolution of the shaft
• Flow rate is directly proportional on the speed, which enables easy control over the entire performance range using variable speed drives
• System pressure has minimal impact on flow rate making this an excellent solution for continuous processes where multiple streams are metered together

Viking 4327AA Series™ internal gear pump

The 4327AA Series™ internal gear pump is the ideal solution for your oil and gas applications. This stainless steel option is fully compliant API 676 pump with 4 bolt mount API 682 cartridge seals. It can handle flows up to 1,600 GPM (363 m³/h).

Features & Benefits

• Internal gear pumps are rotary positive displacement pumps which move the same amount of fluid with each revolution of the shaft
• Flow rate is directly proportional on the speed, which enables easy control over the entire performance range using variable speed drives
• System pressure has minimal impact on flow rate making this an excellent solution for continuous processes where multiple streams are metered together

Viking 4323AA Series™ internal gear API pump

The 4323AA Series™ internal gear API pump is the ideal solution for your oil and gas applications due to its reduced risk of leakage, reduced risk of VOC emissions, and reduced risk of corrosion failure. It can handle flows from 500 to 1600 GPM (114 to 364 m³/h).

Features & Benefits

• Jacketed bracket with API 682 seal chamber standard
• Dual tapered roller-type thrust bearings with 25,000 hour L-10 life standard
